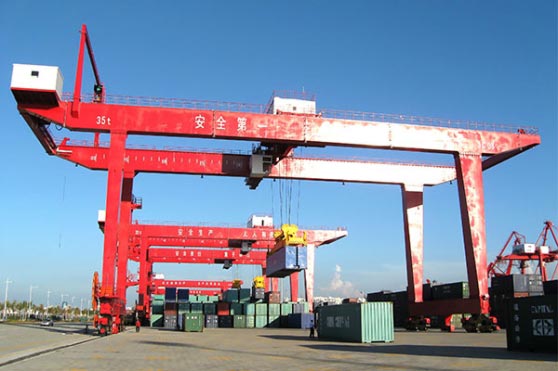

Rail Mounted Container Gantry Crane

Main Parameter：

Capacity:35~40t
Span:30m
Lifting height: 0~10m
Ambient Temperature: -25~40℃

Quotation

Rail mounted container gantry crane is applicable to move, load and unload containers in rail station good yards, port, outside stores, etc. This type cranes use U frame, the clear space is bigger for containers move to sides. The whole crane moves on the rails mounted in ground, more fast, more steady. Power supply is cable drum. The whole work duty is A6 and we can design non-standard according to your requirement!

Ambient temperature conditions:

1. the power of crane is three-phase AC; rated frequency is 50HZ, rated voltage is 380V;

2. the temperature of working environment is -25~+40 centigrade

3. the relative humidity is no more than 50% when the temperature is +40 centigrade

if the requirements are more than the above mentioned , we could specially design for you

1. Weight overload protection device.

2. Top quality long time bearing polyurethane materials buffer.

3. Crane travelling limit switch.

4. Voltage lower protection function.

5. Emergency stop system.

6. Current overload protection system and so on!

Rail Mounted Container Gantry Crane

Lifting capacity (under spreader)		t	35
Span		m	30
Lifting height		m	16
Working system			A6 (intermediate)
Load and unload of goods			20' ,40' container
Speed	Hoisting	m/min	0~10
	Crab travelling		3.4~34
	Trolley travelling		2.9~29
Motor	Hoisting	Type /kw	YZP280M-8/2*55
	Crab travelling		YZP180M-8/2*11
	Trolley travelling		YZP160M-6/4*11
Weight	Crab	t	34
	Total weight		215
Max. wheel pressure		KN	295
Steel track recommended			P43
			3-phase A.C. 50HZ 380V

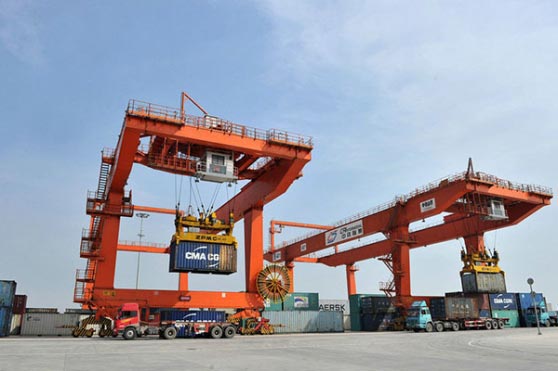

Upper Rail Mounted Container Gantry Crane

Rated loading capacity (under spreader)		t	40.5
Span		m	22±8
Lifting height		m	12.3
Duty			A7
Trolley rotation			270 degree
Container			20' 40' 45'
Speed	Hoist	m/min	10/18 (full load/no load)
	Trolley		40
	Gantry		45
	Rotation	r/min	1.35
Limited dimension	L1	mm	14500
	L2		1550
	S1		9000
	S2		7500
Main dimension	H	mm	23500
	H1		12300
	H2		800
	B		16500
	W		10500
	K		8500
Max. wheel pressure		KN	280
Total power		KW	260
Crane rail recommended			QU70
Power supply			3-phase A.C, 50HZ 380V
