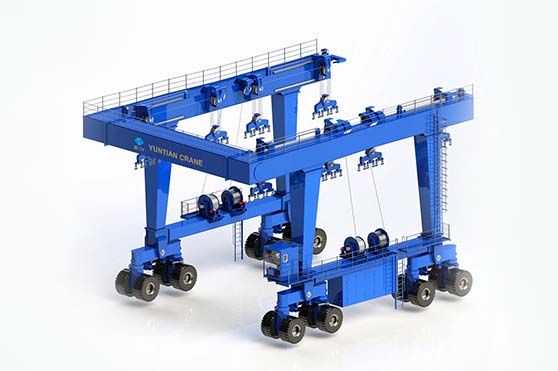

Mobile Boat Handing Machine is mainly used for daily maintaince of 50-1200t yacht . It can achieve 12 kinds of walking functions such as straight movement, oblique movement,row movement, spin and  Ackerman steering etc  to meet the needs of different conditions.



The product uses the full hydraulic drive. It comes with power source and have good mobility. Main end beams use hinged connection to eliminate the road stress caused by uneven road. Lifting mechanism uses load-sensitive hydraulic system to maintain synchronous lifting of multi-hoisting point. In the meanwhile, It can output power according to loading condition output power to lower the whole energy consumption.



Indentified by the Science and Technology Department of Henan Province, this technology has reached the leading domestic and advanced international level.

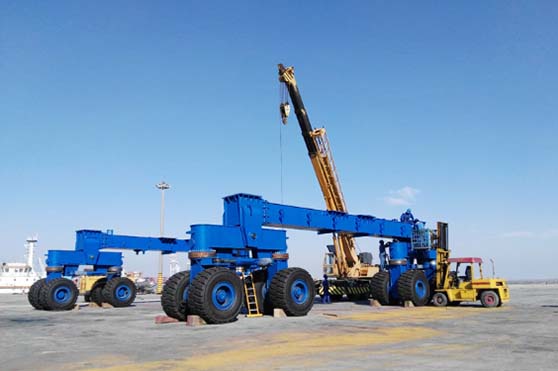

Mobile boat handing machine is a kind of dedicated hoisting machinery which is used to up and down water work of boat and level transportation, main used to ports and sharves along the coast etc. Crane traveling mechanism adopt to structure.

Greatly enhance the production flexibility and production efficiency; High performance, high reliability and accurate operation; Reduce operating cost and energy consumption.

Load capacity	Lifting Speed m/min		Travelling Speed m/min	Maximum Gradeability	Lifting Mechanism/Lifting Point Number	Diesel Engine kw
	Full Load	Empty Load
32t	0~3	0~4	0~30	4%	4/4	90
50t	0~1	0~3	0~30	4%	4/4	110
64t	0~1	0~3	0~30	4%	4/4	110
100t	0~1	0~3	0~20	4%	4/8	120
150t	0~1	0~3	0~20	4%	4/16	120
200t	0~1	0~3	0~30	4%	4/16	150
300t	0~1	0~3	0~20	4%	4/32	250
350t	0~1	0~3	0~25	4%	4/32	230
400t	0~1	0~3	0~25	4%	4/32	300
500t	0~1	0~3	0~25	4%	8/32	2x130
550t	0~1	0~3	0~25	4%	8/32	2x150
600t	0~1	0~3	0~20	4%	8/32	2x185
700t	0~1	0~3	0~10	4%	8/32	2x200
800t	0~1	0~3	0~10	4%	8/32	2x230
