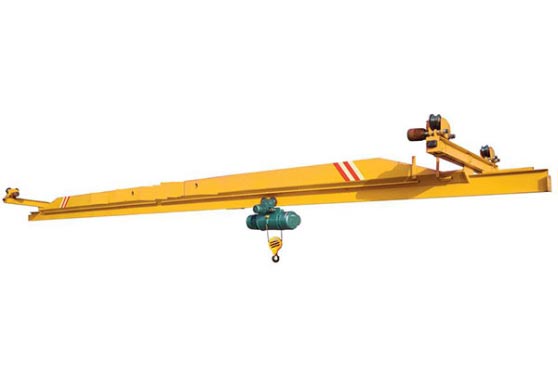

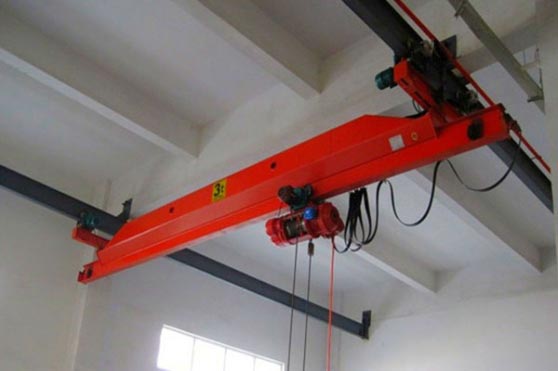

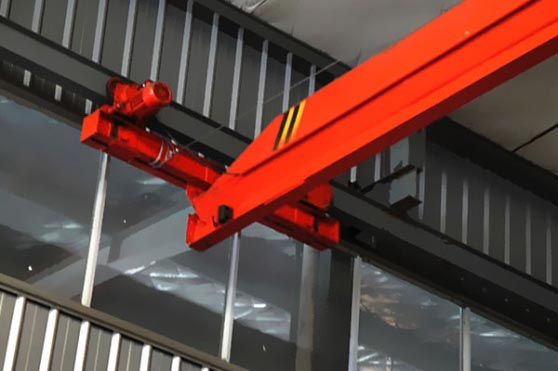

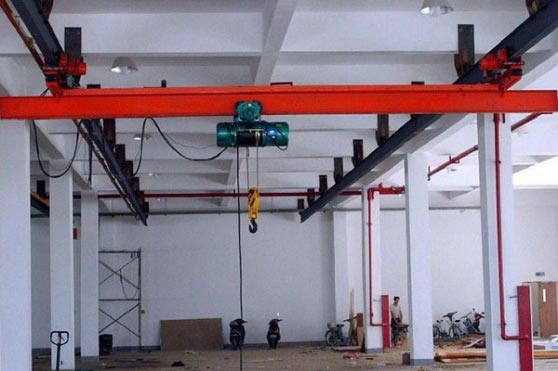

Underhung Single Girder Overhead Crane

Underhung Single Girder Overhead Crane
Main Parameter:
  • Capacity:1~20t
  • Span:7.5~31.5m
  • Lifting height: 6,9,12,18,24,30m
  • Lifting speed: 0.35/3.5,0.7/7,0.8/8m/min or 3.5,7,8m/min
We will reply in 24 hours.
Monorails and underhung cranes with monorail hoist owns tight dimension, low building headroom, light dead weight and light wheel load. It is a light duty track traveling crane with trajectory.The standard capacity is 0.5T, 1T, 2T, 3T, 5T; the span is from 3m to16m. it adopts ground control and works at a temperature of -25--40 centigrade. It is prohibited to use the equipment at combustible,explosive or corrosive environment.

Under Running Single Girder Overhead Crane applies to works and storehouses where it is ≥100 mm height between the rail surface and the rafter of roof truss.

The trolley forms a set with electric hoist, The mechanism is nimble, with safe and reliable motion. It is capable of designing and making non-standard hoisting equipment.
Henan Yuntian Crane Co.,LTD. crane could supply not only overhead crane but also the overhead crane solutions, firstly, we will supply overhead bridge crane design, overhead crane manual, overhead crane drawing, overhead crane wiring diagram, overhead crane electrical diagram and overhead crane safety video before or after delivery, our technician will do supervision the installation according to the document, of course, the customer can do installation by themselves according to their requirement.

After installation, our technician will indicate to do the load test according to the overhead crane load test procedure, then overhead crane operator training and overhead crane maintenance training, all the procedure will be made according to the overhead crane training videos and overhead crane training PowerPoint.

Henan Yuntian Crane Co,.LTD. crane has a lot of honor for overhead crane certification for different overhead crane types.

If you want to know more information about overhead crane, please find the overhead crane attachments, overhead crane pdf, overhead crane catalogue to get mover overhead crane specification and overhead crane regulations from the download center.

The Single girder overhead crane include 1 ton overhead crane, 2 ton overhead crane, 3 ton overhead crane, 5 ton overhead crane, 10 ton overhead crane, 16 ton overhead crane, 20 ton overhead crane.

If you need bigger capacity. Please check the double girder overhead crane.
Capacity
T
0.5
Span
m
3.5
8.5
12.5
16.5
20
22.5
Lifting height
m
6/9/12/18/24/30
Lifting speed
m/min
8or (8/0.8)
Trolley travelling speed
m/min
20
Crane travelling speed
m/min
20
Total weight
kg
1060
1540
1876
1960
2745
2976
Max. Wheel load
KN
6.28
7.19
7.97
9.87
10.09
10.66
Rail recommended
Model
120a~145c
Total motor power
kw
1.8kw
Main dimension (mm)
Span(m)
3.5
8.5
12.5
16.5
20
22.5
Rail top to hook center
H4
830
Crane base distance
W
1000
1500
2000
2500
3000
Crane width
B
1500
2000
2500
3000
3500
Hook left limitation
S1
370
Hook right limitation
S2
223

Capacity
T
1
Span
m
3.5
8.5
12.5
16.5
20
22.5
Lifting height
m
6/9/12/18/24/30
Lifting speed
m/min
8or (8/0.8)
Trolley travelling speed
m/min
20
Crane travelling speed
m/min
20
Total weight
kg
1075
1555
1891
2309
3111
3383
Max. Wheel load
KN
9.52
10.19
10.91
11.91
13.87
14.53
Rail recommended
Model
120a~145c
Total motor power
kw
2.5kw
Main dimension (mm)
Span(m)
3.5
8.5
12.5
16.5
20
22.5
Rail top to hook center
H4
847
Crane base distance
W
1000
1500
2000
2500
3000
Crane width
B
1500
2000
2500
3000
3500
Hook left limitation
S1
310
Hook right limitation
S2
130

Capacity
T
2
Span
m
3.5
8.5
12.5
16.5
20
22.5
Lifting height
m
6/9/12/18/24/30
Lifting speed
m/min
8or (8/0.8)
Trolley travelling speed
m/min
20
Crane travelling speed
m/min
20
Total weight
kg
1162
1541
2184
2783
3585
3903
Max. Wheel load
KN
16.35
16.32
17.65
19.03
20.97
21.73
Rail recommended
Model
120a~145c
Total motor power
kw
4.2kw
Main dimension (mm)
Span(m)
3.5
8.5
12.5
16.5
20
22.5
Rail top to hook center
H4
1020
Crane base distance
W
1000
1500
2000
2500
3000
Crane width
B
1500
2000
2500
3000
3500
Hook left limitation
S1
290
Hook right limitation
S2
170

Capacity
T
3
Span
m
3.5
8.5
12.5
16.5
20
22.5
Lifting height
m
6/9/12/18/24/30
Lifting speed
m/min
8or (8/0.8)
Trolley travelling speed
m/min
20
Crane travelling speed
m/min
20
Total weight
kg
1292
1840
2379
3019
3704
4028
Max. Wheel load
KN
23.22
23.07
24.07
25.50
27.11
27.87
Rail recommended
Model
120a~145c
Total motor power
kw
5.7kw
Main dimension (mm)
Span(m)
3.5
8.5
12.5
16.5
20
22.5
Rail top to hook center
H4
1134
Crane base distance
W
1000
1500
2000
2500
3000
Crane width
B
1500
2000
2500
3000
3500
Hook left limitation
S1
290
Hook right limitation
S2
170


Capacity
T
5
Span
m
3.5
8.5
12.5
16.5
20
22.5
Lifting height
m
6/9/12/18/24/30
Lifting speed
m/min
8or (8/0.8)
Trolley travelling speed
m/min
20
Crane travelling speed
m/min
20
Total weight
kg
1599
2271
2996
3675
5056
5493
Max. Wheel load
KN
37.33
37.18
38.20
39.57
42.71
43.69
Rail recommended
Model
120a~145c
Total motor power
kw
9.1kw
Main dimension (mm)
Span(m)
3.5
8.5
12.5
16.5
20
22.5
Rail top to hook center
H4
1320
Crane base distance
W
1000
1500
2000
2500
3000
Crane width
B
1500
2000
2500
3000
3500
Hook left limitation
S1
360
Hook right limitation
S2
150

Capacity
T
10
Span
m
3.5
8.5
12.5
16.5
20
22.5
Lifting height
m
6/9/12/18/24/30
Lifting speed
m/min
7or (7/0.7)
Trolley travelling speed
m/min
20
Crane travelling speed
m/min
20
Total weight
kg
2372
3189
4170
5161
6975
7532
Max. Wheel load
KN
64.08
69.85
71.01
72.90
77.10
78.33
Rail recommended
Model
140b~163c
Total motor power
kw
15.2kw
Main dimension (mm)
Span(m)
3.5
8.5
12.5
16.5
20
22.5
Rail top to hook center
H4
1670
Crane base distance
W
1000
1500
2000
2500
3000
Crane width
B
1500
2000
2500
3000
3500
Hook left limitation
S1
500
Hook right limitation
S2
500
