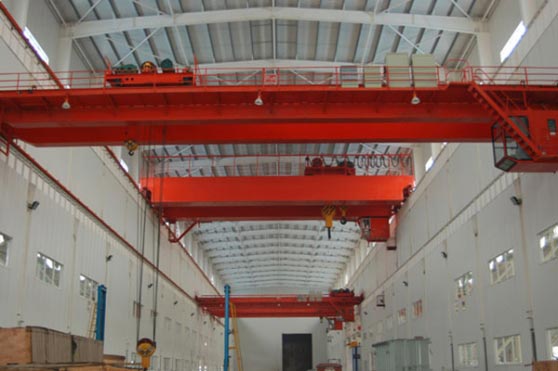

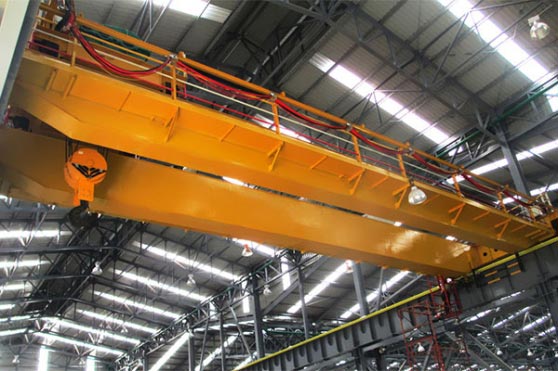

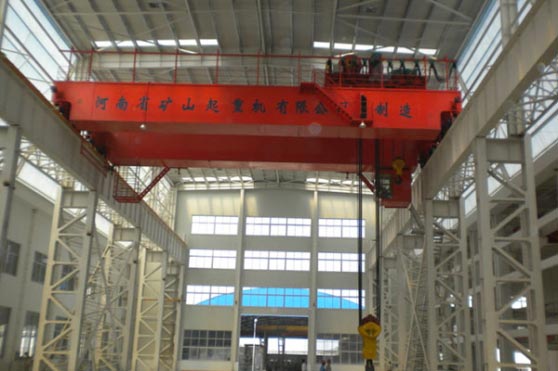

Double Girder Overhead Crane with Winch Trolley

Main Parameter：

Capacity:5,10/3,16/3,20/5,32/10T
Span:7.5~25.5m
Lifting height: 6,9,12,18,24,30m
Lifting speed: 3,3.5,7,8m/min

Quotation

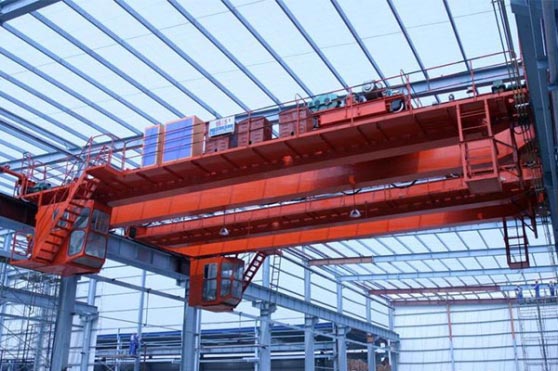

The crane is composed with Girder frame, Crane travel device, and the trolley with lifting and moving device. There are Pave the rail for the trolley move on the main girder. Assemble the moving table on the outside of the two main girder, one side is prepare for the assemble and maintenance the crane move device, another side is prepare for the assemble of the trolley conductor device. There are full field of view Cabin suspend under the main girder, there are joint control desk or single control box packed within the Cabin, assemble the sidelong ladder between the Cabin and moving table, The main girder joint with the two side end carriage which with the joint point in the middle.

Henan Yuntian Crane Co.,LTD. crane has top advanced overhead crane in the field of industrial overhead crane, All the overhead crane are design according to overhead crane standards. The single girder overhead crane (monorail overhead crane) and double girder overhead crane have a good design of overhead crane. overhead crane has many overhead crane components for different parts of overhead crane include overhead crane and hoist, overhead crane brake, overhead crane end trucks, overhead crane hoist, overhead crane trolley, overhead crane hooks, overhead crane kits, overhead crane pendent, overhead crane controls, overhead crane signals indicator, overhead crane rails, overhead crane rail stops and so on overhead crane equipment.

Henan Yuntian Crane Co.,LTD. crane Service for installation.

Henan Yuntian Crane Co.,LTD. crane could supply not only overhead crane but also the overhead crane solutions, firstly, we will supply overhead bridge crane design, overhead crane manual, overhead crane drawing, overhead crane wiring diagram, overhead crane electrical diagram and overhead crane safety video before or after delivery, our technician will do supervision the installation according to the document, of course, the customer can do installation by themselves according to their requirement.

After installation, our technician will indicate to do the load test according to the overhead crane load test procedure, then overhead crane operator training and overhead crane maintenance training, all the procedure will be made according to the overhead crane training videos and overhead crane training PowerPoint.

Henan Yuntian Crane Co.,LTD. crane has a lot of honor for overhead crane certification for different overhead crane types.

If you want to know more information about overhead crane, please find the overhead crane attachments, overhead crane pdf, overhead crane catalogue to get mover overhead crane specification and overhead crane regulations from the download center.

electric overhead crane, electric overhead traveling crane, overhead bridge crane, overhead crane bridge, overhead crane system, overhead gantry crane, overhead hoist crane, overhead traveling crane,

Capacity	T	5
Span	m	7.5	10.5	13.5	16.5	19.5	22.5	25.5
Lifting height	m	6/9/12/18/24/30
Lifting speed	m/min	8or8（8/0.8）
Trolley travelling speed	m/min	20
Crane travelling speed	m/min	20
Total weight	kg	5230	6400	7450	8600	10560	12350	14850
Max. Wheel load	KN	39	43	48	53	59	62	71
Rail recommended	Model	38kg/m
Total motor power	kw	8.3
Main dimension (mm)	Span(m)	7.5	10.5	13.5	16.5	19.5	22.5	25.5
Rail top to crane top	H	1350						1550
Rail top to hook center	H4	385						540
Crane base distance	W	2700-3100				3200-3600		3800
Crane width	B	3200-3900				3700-4200		5300
Trolley rail distance	K	1400-1800
Hook left limitation	S1	1200						1200
Hook right limitation	S2	1200						1200

Capacity	T	10/3
Span	m	7.5	10.5	13.5	16.5	19.5	22.5	25.5
Lifting height	m	9/12/18/24
Lifting speed	m/min	7(7/0.7) or8(8/0.8）
Trolley travelling speed	m/min	20
Crane travelling speed	m/min	20;30
Total weight	kg	6240	8050	9480	10450	13260	16530	18620
Max. Wheel load	KN	65	72	77	80	88	97	102
Rail recommended	Model	38kg/m
Total motor power	kw	8.3
Main dimension (mm)	Span(m)	7.5	10.5	13.5	16.5	19.5	22.5	25.5
Rail top to crane top	H	1450				1650
Rail top to hook center	H4	365				565
Crane base distance	W	3000-4200
Crane width	B	3500-5696
Trolley rail distance	K	1600-2250
Hook left limitation	S1	1250				900
Hook right limitation	S2	1400				1200

Capacity	T	16/3
Span	m	7.5	10.5	13.5	16.5	19.5	22.5	25.5
Lifting height	m	9/12/18/24
Lifting speed	m/min	3.5(3.5/0.35) or8(8/0.8）
Trolley travelling speed	m/min	20
Crane travelling speed	m/min	20
Total weight	kg	7970	8610	9990	12800	15300	17540	20080
Max. Wheel load	KN	95	102	110	119	127	134	141
Rail recommended	Model	38kg/m
Total motor power	kw	13.8
Main dimension (mm)	Span(m)	7.5	10.5	13.5	16.5	19.5	22.5	25.5
Rail top to crane top	H	1450			1650
Rail top to hook center	H4	-500			-310
Crane base distance	W	3000-4200
Crane width	B	3500-5696
Trolley rail distance	K	1600-2250
Hook left limitation	S1	1240			900
Hook right limitation	S2	1450			1200

Capacity	T	20/5
Span	m	7.5	10.5	13.5	16.5	19.5	22.5	25.5
Lifting height	m	9/12/18/24
Lifting speed	m/min	3.5(3.5/0.35) or8(8/0.8）
Trolley travelling speed	m/min	20
Crane travelling speed	m/min	20
Total weight	kg	10500	11500	13640	15980	17700	20300	22920
Max. Wheel load	KN	118	129	135	148	156	164	169
Rail recommended	Model	38kg/m
Total motor power	kw	19.3
Main dimension (mm)	Span(m)	7.5	10.5	13.5	16.5	19.5	22.5	25.5
Rail top to crane top	H	1790
Rail top to hook center	H4	-350
Crane base distance	W	3750-4500
Crane width	B	4632-5982
Trolley rail distance	K	1600-2550
Hook left limitation	S1	1100
Hook right limitation	S2	1100

Capacity	T	32/10
Span	m	7.5	10.5	13.5	16.5	19.5	22.5	25.5
Lifting height	m	9/12/16/24
Lifting speed	m/min	3(3/0.3) or7(7/0.7）
Trolley travelling speed	m/min	20
Crane travelling speed	m/min	20
Total weight	kg	12530	14660	16360	18870	21650	24260	27060
Max. Wheel load	KN	167	184	196	206	215	224	233
Rail recommended	Model	43kg/m
Total motor power	kw	20
Main dimension (mm)	Span(m)	7.5	10.5	13.5	16.5	19.5	22.5	25.5
Rail top to crane top	H	1900
Rail top to hook center	H4	-700
Crane base distance	W	1600-2500
Crane width	B	5070-5960			5572-6222
Trolley rail distance	K	1600-2550
Hook left limitation	S1	1100
Hook right limitation	S2	1600
