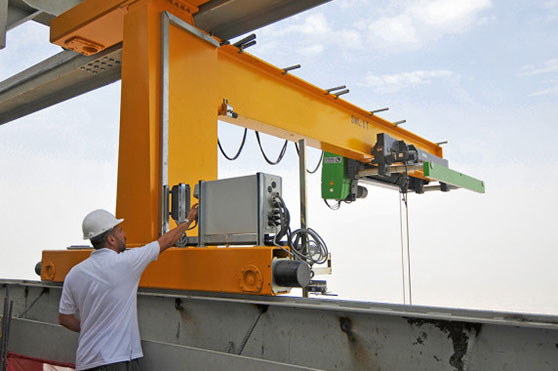

Wall Travelling Jib Crane

Main Parameter：

Capacity :0.5 ~ 5 t
Lifting height :MAX 20m
Jib length :2 ~ 10 m

Quotation

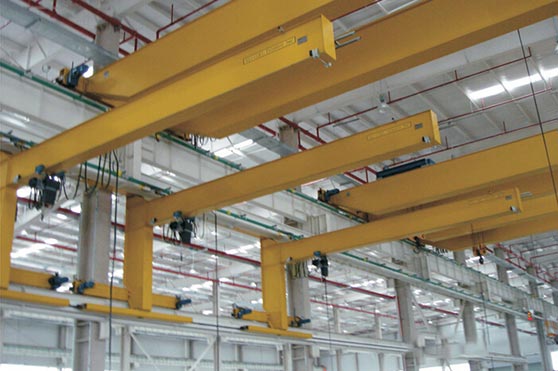

The wall travelling jib crane is the second transport level which carries goods independently from overhead travelling cranes. It provides fluent moving of materials on an every level of the workshop. Equipped by wire rope hoists with low headroom or chain hoists series. Control mode is pendent control with buttons, or remote radio control. Wall-travelling jib cranes are often used in production halls where several workplaces have to be linked, tightest assembly line, warehouse, or other industrial area.

Application

Factory,workshop,warehouse,store;Logistic,dock,port , freight yard ;Construction building,mine,etc.

nstallation with high strength bolt connection;

Convenient in operation,safe and turn to flexible;

Low noise,commodious cabin and good looking;

High quality and efficiency, competitive price;

Reasonable and simple whole structure,Light self-weight, conform to the state standards;

Inexpensive handling systems doesn't require modification of the building structure around.

Type	Unit	BQ0.5	BQ1	BQ2	BQ3	BQ5
Ioad capacity	t	0.5	1	2	3	5
crane travelling speed	m/min	20	20	20	20	20
Lifting speed	m/min	8	8	8	8	8
Hoist travelling speed	m/min	20	20	20	20	20
Work class	A3
Power supply	220~440V,50/60HZ,3phase or customized
Lifting height	m	Customized
Jib length	m	Customized
Control mode	Pendent pushbutton control or remote control
