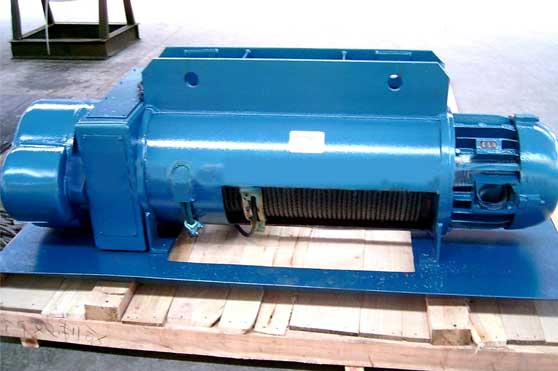

The installation of these Metallurgy Wire rope Electric hoists is up to the application and the manufacturing facility where they will be used. They could be installed on electric single girder crane and double girder cranes, or it can be installed on a fixed overhead track.
| Capacity | T | 2 | 3 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lifting height | m | 9 | 12 | 15 | 18 | 20 | 9 | 12 | 15 | 18 | 20 |
| Lifting speed | m/min | 8(8/2) | |||||||||
| Trolley travelling speed | m/min | 20 | |||||||||
| Working duty | / | M4 | M4 | ||||||||
| Wire rope diameter | / | 11 | 13 | ||||||||
| Min. curvature radius | m | 2 | 3 | 4 | 5 | 6 | 2 | 3 | 4 | 5 | 6 |
| Lifting motor | kw | 3.0(3.0/0.75) | 4.5(4.5/1.25) | ||||||||
| Travelling motor | kw | 0.4 | 0.4 | ||||||||
| Rail | Model | 20a-28b | |||||||||
| Total weight | kg | 439 | 457 | 479 | 494 | 505 | 475 | 493 | 515 | 530 | 541 |
| Lifting height | m | 9 | 12 | 15 | 18 | 20 | 9 | 12 | 15 | 18 | 20 |
| Travelling side width | B | 950 | |||||||||
| Hoist length | L | 1044 | 1147 | 1250 | 1353 | 1424 | 1110 | 1213 | 1316 | 1419 | 1490 |
| Hook upper limitation | H | 1300 | 1315 | 1400 | |||||||
| Capacity | T | 5 | 10 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lifting height | m | 9 | 12 | 15 | 18 | 20 | 9 | 12 | 15 | 18 | 20 |
| Lifting speed | m/min | 8(8/2) | 7(7/1.75) | ||||||||
| Trolley travelling speed | m/min | 20 | |||||||||
| Working duty | / | M4 | M4 | ||||||||
| Wire rope diameter | / | 15 | |||||||||
| Min. curvature radius | m | 2.5 | 3 | 4 | 5 | 6 | 3.5 | 4 | 6 | 7.5 | 9 |
| Lifting motor | kw | 7.5(7.5/2.0) | 13(13/3.25) | ||||||||
| Travelling motor | kw | 0.8 | 0.8*2 | ||||||||
| Rail | Model | 25a-45a | 32b-45a | ||||||||
| Total weight | kg | 679 | 752 | 776 | 794 | 809 | 1169 | 1221 | 1282 | 1326 | 1396 |
| Lifting height | m | 9 | 12 | 15 | 18 | 20 | 9 | 12 | 15 | 18 | 20 |
| Travelling side width | B | 1055 | |||||||||
| Hoist length | L | 1256 | 1356 | 1456 | 1556 | 1626 | 1647 | 1828 | 2009 | 2190 | 2310 |
| Hook upper limitation | H | 1590 | 1600 | ||||||||
