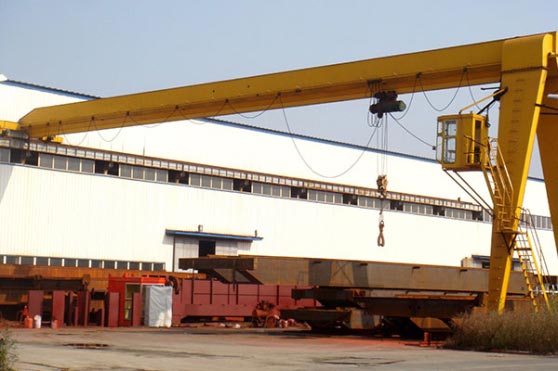

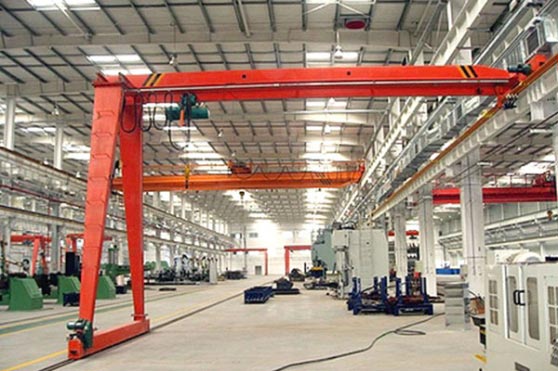

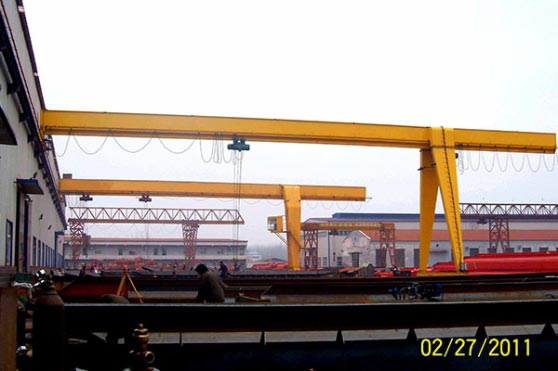

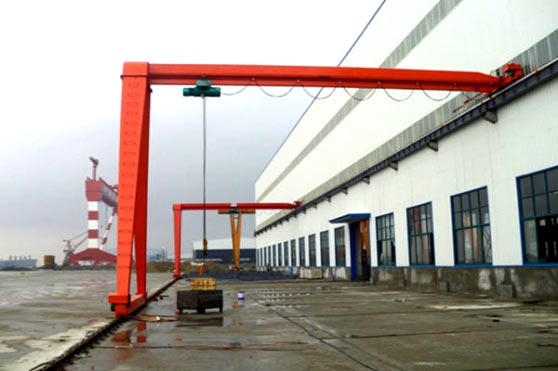

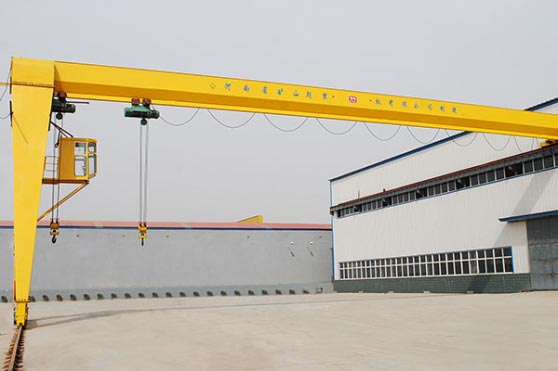

Semi Single Girder Gantry Crane

Main Parameter：

Capacity:3,5,10,16T
Span:12~30m
Lifting height: 6,9m
Lifting speed: 3.5,7,8m/min

Quotation

The large welded structures such as trolley, cable drum, bogie frame etc, through gas annealing furnace annealing treatment to guarantee product after-welding precision, Henan Yuntian Crane CO .,LTD. has car-gas annealing furnace, net size inside the furnace is 10000mmx4000mmx4000mm car-gas annealing furnace, can meet all kinds of small medium and large welded structure stress relief annealing after welding on the crane such as trolley, cable drum, bogie frame, balance beam, spreader.

According to the clients’ demands, the crane can be add our company patent-electric anti-sway, this is the world's leading technology, first to achieve lean management, lean production in crane field, and promote the further improvement of product quality.

1. Quality problems of products sold by our company will be solved as per the “three guarantees” system of our company by the “three guarantees” service team;

2. Related personnel will be sent to the site immediately after receiving quality complaints (by call, letter or oral notice) from clients;

3. Personnel involved in after-sales service shall be serious and considerate in handling the problem to make clients care-free;

4. In addition to solve quality problems, personnel involved in after-sales service shall train clients, answer their technical inquiries and related questions free of charge;

5. Related cost for products with quality problem will be shouldered by our company. Our company charges for quality problems caused by clients (or problems after the warranty term), but the charge will not be higher than the expense (or cost);

Capacity	t	3				5					10					16
Span	S(m)	12	16	20	24	12	16	20	24	30	12	16	20	24	30	12	16	20	24	30
Lifting height	m	6~9				6~9				9	6~9				9	6~9				9
Lifting speed	m/min	8、8/0.8				8、8/0.8					7、7/0.7					3.5、3.5/0.35
Trolley speed	m/min	20				20					20					20
Crane speed	m/min	20				20					20					20
Work duty		A3-A5				A3-A5					A3-A5					A3-A5
Track		P34 P38				P24 P38					P38 P43					P38 P43

SERVICE SUPPORT

Focus on Quality, Serve Worldwide

Establish strong sales service system with full coverage for 6 continents, 140 countries.
24 hours, 365 days, 1000+ technical professionals
Whatever your requirements, you 'll find the perfect service-oriented solution to match your specific needs with our help.
Right where you need us,whenever you need us

We have a strict production process,the systematic distribution program,intimate on-site installation guide,excellent after-sales service to ensure that the product show in your eyes completely at the first time and give you a comfortable trip of the crane procurement.
