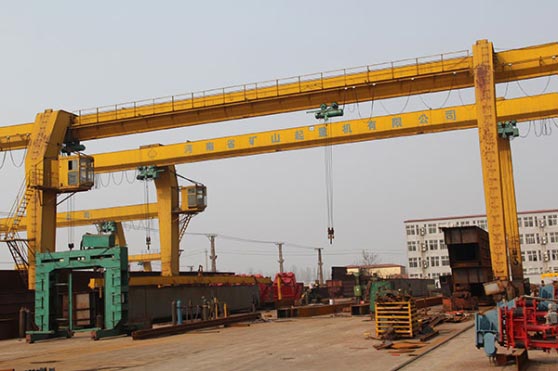

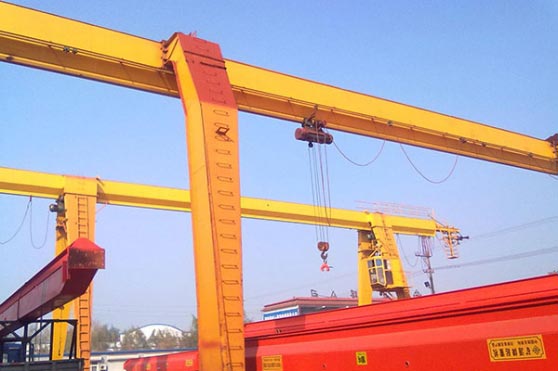

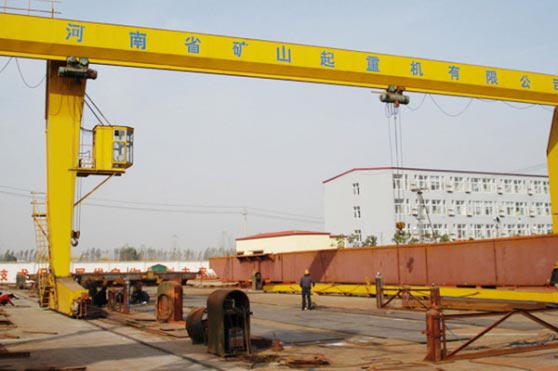

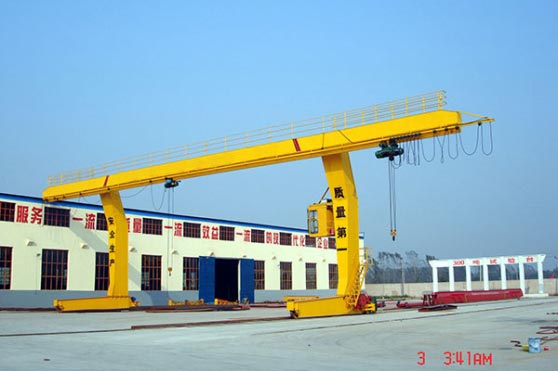

L-Shaped Legs Single Girder Gantry Crane with Hoist

Main Parameter：

Capacity:3,5,10,16T
Span:12~30m
Lifting height: 6,9m
Lifting speed: 3.5,7,8m/min

Quotation

L type single beam gantry crane is matched with trolley, a kind of track travelling mid-light type crane. It is ideal for outdoor applications where lifting facilities are provided without the cost of a building or any supporting steelwork. They are also suited to indoor applications where existing building structures are not suitable to take overhead cranes, and where additional supporting steelwork would result in a loss of floor area. It can be constructed with a cantilever to allow handling outside the rail centers.

Quality problems of products sold by our company will be solved as per the “three guarantees” system of our company by the “three guarantees” service team;

Related personnel will be sent to the site immediately after receiving quality complaints (by call, letter or oral notice) from clients;

Personnel involved in after-sales service shall be serious and considerate in handling the problem to make clients care-free;

In addition to solve quality problems, personnel involved in after-sales service shall train clients, answer their technical inquiries and related questions free of charge;

Related cost for products with quality problem will be shouldered by our company. Our company charges for quality problems caused by clients (or problems after the warranty term), but the charge will not be higher than the expense (or cost).

Capacity	t	3				5					10					16
Span	S(m)	12	16	20	24	12	16	20	24	30	12	16	20	24	30	12	16	20	24	30
Lifting height	m	6~9				6~9				9	6~9				9	6~9				9
Lifting speed	m/min	8 8/0.8				8 8/0.8					7 7/0.7					3.5 3.5/0.35
Trolley speed	m/min	20				20					20					20
Crane speed	m/min	20				20					20					20
Work duty		A3-A5				A3-A5					A3-A5					A3-A5
Track		P34 P38				P24 P38					P38 P43					P38 P43
