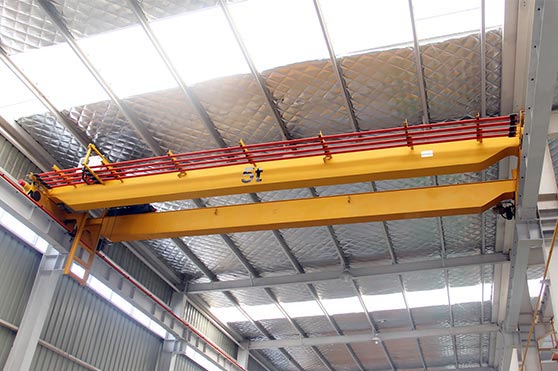

Yuntian NLH European Type Double Girder Overhead Crane

Main Parameter：

Capacity:Max 50t
Span:10.5~31.5m
Lift height:6/9/12m
Work duty :A5

Quotation

Yuntian NLH European type double girder overhead crane is a new type double girder overhead crane, compared with the normal double girder overhead crane, NLH adopts the FEM standard, structure is more compact, working more steady with low noise, the motor is ABB, reducer uses SEW, Siemens main electric parts, all these characteristics makes it more has more advantages compared with normal overhead crane.

The whole technical level reach to international and domestic advanced leading level. The crane's steel mechanism with professional design, structure optimization, meet the requirements of strength, rigidity and sability. During the design progress, we also take into account about the working environment, the design of steel structure considering the manufacture, inspection, transportation, installation and maintenance convenience.

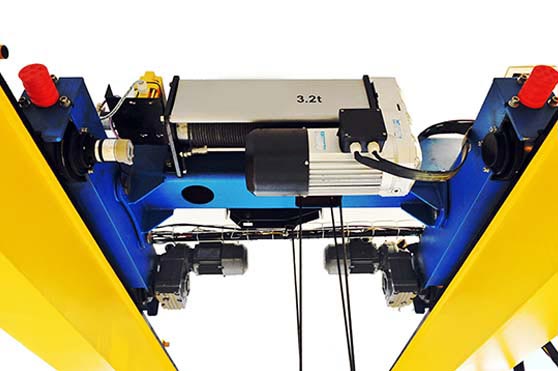

The electric hoist trolley adopt ND type steel wire rope electric hoist trolley, the standard traveling speed of crane is 3-30m/min, standard traveling speed of trolley is 2-20m/min. As for lifting speed, frequency control makes it has optional speed besides the standard speed to meet customers different requirement.

Light self-weight and compact structure can greatly reduce the cost of the warehouse, also spare more room for the lifting height, greatly take advantages of the warehouse.

1.compact structure

2.convenient and safe operation

3.efficient and low noise

4.room saving

5.accurate lifting steady operation

Capacity (t)	Span (m)	Lift height (m)	Work duty	Lift speed (m/min)	Trolley speed (m/min)	Crane speed (m/min)	Max. wheel load (Kn)
5	10.5	6 9 12	A5	0.66/4 0.8/5 1.0/6.3 1.3/8 1.6/10	2.0~20 3.0~30	3.0~30 4.0~40	35.8
	13.5						38.6
	16.5						42.4
	19.5						45.6
	22.5						50.8
	25.5						57.8
	28.5						64.3
	31.5						69.8
10	10.5	6 9 12	A5	0.66/4 0.8/5 1.0/6.3 1.3/8	2.0~20 3.0~30	3.0~30 4.0~40	60.5
	13.5						64.5
	16.5						69
	19.5						76.3
	22.5						80.7
	25.5						85.9
	28.5						92.6
	31.5						100.5
16	10.5	6 9 12	A5	0.53/3.4 0.66/4 0.8/5	2.0~20 3.0~30	3.0~30 4.0~40	93
	13.5						99.7
	16.5						106.8
	19.5						114.4
	22.5						120.8
	25.5						128.5
	28.5						136.1
	31.5						144.3
20	10.5	6 9 12	A5	0.53/3.4 0.66/4 1.2/4.95	2.0~20 3.0~30	3.0~30 4.0~40	112
	13.5						120
	16.5						127
	19.5						133.4
	22.5						140.2
	25.5						74.6
	28.5						78.5
	31.5						83.4
32	10.5	6 9 12	A5	0.6/2.6 0.8/3.3 0.82~4.9 1.03~6.2	2.0~20 3.0~30	3.0~30 4.0~40	84
	13.5						88.6
	16.5						93.2
	19.5						97.7
	22.5						102
	25.5						107.8
	28.5						112.3
	31.5						117.6
50	10.5	6 9 12	A5	0.4~2.4 0.53~3.2	2.0~20 3.0~30	3.0~30 4.0~40	136
	13.5						142
	16.5						149
	19.5						153
	22.5						160
	25.5						167
	28.5						173
	31.5						180
