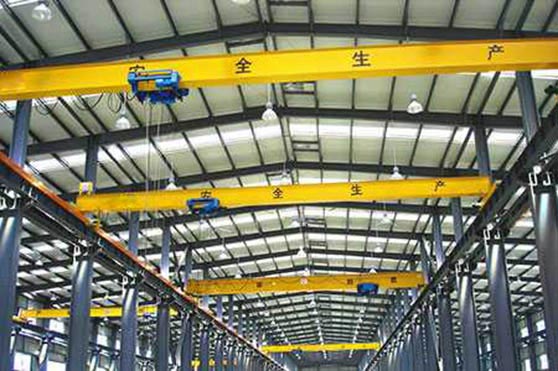

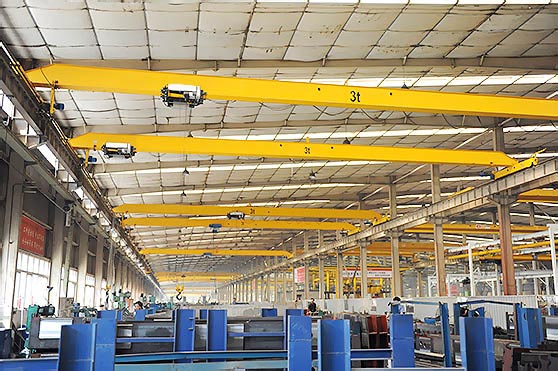

Europe Standard Single Beam Overhead Crane

Main Parameter：

Capacity: 1~12.5t
Span:7.5~25.5m
Lifting height:6~30m
Lifting speed:0.8/5m/min

Quotation

HD Europe standard single beam overhead crane is our new designed crane for the low workshop and high lifting height demands. It has many advantages such as: Strong rigidity, light dead weight, outstanding structure design, etc. It could save your factory space and investment effectively. Its technology is advanced and design is based on international standard: DIN (Germany), FEM (Europe), and ISO (International). Its particular and special travelling structure is your best choice.

HD electric single girder overhead crane could be widely used to handle materials in many industries' workshop and warehouse. such as machinery manufacture. warehouse. logistic. food. paper making, electronics industries workshop and other material handling situations. The lifting hoist adopts M5 working class with double lifting speed. motor with ABM German brand motor. Travelling motor uses SEW European brand in one motor gear motors. Cross and long traveling are variable travelling speed. Electric parts adopt Siemens brand. The protection class is IP 54 high class. The working class can reach to A5/M5 class under ISO standard.

Optimized designing, DIN/FEM/ISO standard. smaller wheel load. space saving

Max. Safe working load 32t

Flexible solution for all lifting needs

Excellent driving properties, stepless control, smoothly moving

Single welding box girder, DIN/FEM standard deflection

Fe37Fe52Q235BQ345B

Material Fe37 or Fe52

Whole length CNC cutting for complete web plate. high deflection accuracy

High quality automatic welding and NDT inspection

Shot-blasting Sa2.5 for complete girder after welding, stress release

class High tension bolts mounting between girder and legs, life time safety connection

Compacted gear motor driving, stepless control, harden gear, safety disc brake

IP55F40% ED

High protection class IP55, F class, 40% ED

Double flanged or flat wheels, anti-friction bearings, cellular buffers, derailment protectors

Phase control guard opens the main contactor in case of phase failure

All hoist and crane movements are independent and can be run simultaneously.

Contactors meet crane applications, rated for severe vibration.

The control panels are finished to withstand corrosion, IP55

The components are positioned in a maintenance friendly way, and the whole layout provides good protection against accidental contact.

The multi-wire type fixed cables with plastic insulation are intended for crane usage.

Cables are coded either with numbers, colors or tags for easy identification.

The flat cables used for festoons are PVC insulated flexible flat cables rated for 450/750V, specially designed for cranes, hoists.

Festoon cables are suspended on cable saddles, fixed to cable trolleys, running in a galvanized C-track, which is connected to the main girder with bolted or welded support brackets.

Gear motor locker rope to protect drop

Rain cover for outside hoist, driving units, electrical cubicle

Warning indicator: flashing lights and warning sound

Wireless infra-detector for anti-collusion

Control Mode: Pendant or remote control -Easy control, no additional driver necessary

Two steps push button, with emergency stop

Independent festoon station or fixed suspended under hoist

Protection class IP54

Span	m	7.5	10.5	13.5	16.5	19.5	22.5	25.5
Capacity	t	1~12.5t
Total weight	kg	1781~12086
Trolley weight	kg	405~740
Max. Wheel load	kn	13.5~90.94
Travel rail		P24~P43
Lifting speed	m/min	0.8/5	0.8/5	0.8/5	0.8/5	0.8/5	0.8/5	0.8/5
Lifting height	m	≥ 6	≥ 6	≥ 6	≥ 6	≥ 6	≥ 6	≥ 6
Total motor power	kw	4.31	4.31	4.31	4.31	4.67	4.67	4.67
Crane speed	m/min	3-30	3-30	3-30	3-30	3-30	3-30	3-30
Trolley speed	m/min	2-20	2-20	2-20	2-20	2-20	2-20	2-20
Working duty		M5/A5
