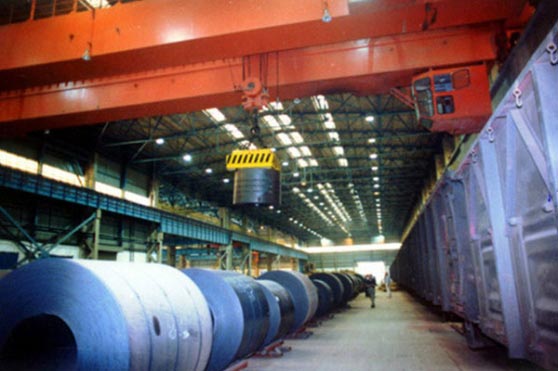

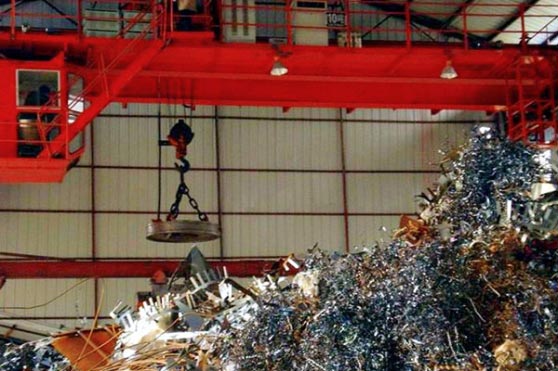

Double Girder Overhead Crane with Electromagnet

Main Parameter：

Capacity:5,10,16T
Span:10.5~31.5m
Lifting height: 16m
Lifting speed: 13,15.6m/min

Quotation

The crane is composed with Girder frame, Crane travel device, and the trolley with lifting and moving device. There are Pave the rail for the trolley move on the main girder. Assemble the moving table on the outside of the two main girder, one side is prepare for the assemble and maintenance the crane move device, another side is prepare for the assemble of the trolley conductor device. There are full field of view Cabin suspend under the main girder, there are joint control desk or single control box packed within the Cabin, assemble the sidelong ladder between the Cabin and moving table, The main girder joint with the two side end carriage which with the joint point in the middle.

Henan Yuntian Crane Co.,LTD crane has top advanced overhead crane in the field of industrial overhead crane, All the overhead crane are design according to overhead crane standards. The single girder overhead crane (monorail overhead crane) and double girder overhead crane have a good design of overhead crane. overhead crane has many overhead crane components for different parts of overhead crane include overhead crane and hoist, overhead crane brake, overhead crane end trucks, overhead crane hoist, overhead crane trolley, overhead crane hooks, overhead crane kits, overhead crane pendent, overhead crane controls, overhead crane signals indicator, overhead crane rails, overhead crane rail stops and so on overhead crane equipment.

Henan Yuntian Crane Co.,LTD crane Service for installation.

Henan Yuntian Crane Co.,LTD crane could supply not only overhead crane but also the overhead crane solutions, firstly, we will supply overhead bridge crane design, overhead crane manual, overhead crane drawing, overhead crane wiring diagram, overhead crane electrical diagram and overhead crane safety video before or after delivery, our technician will do supervision the installation according to the document, of course, the customer can do installation by themselves according to their requirement.

After installation, our technician will indicate to do the load test according to the overhead crane load test procedure, then overhead crane operator training and overhead crane maintenance training, all the procedure will be made according to the overhead crane training videos and overhead crane training PowerPoint,

Henan Yuntian Crane Co.,LTD crane has a lot of honor for overhead crane certification for different overhead crane types

If you want to know more information about overhead crane, please find the overhead crane attachments, overhead crane pdf, overhead crane catalogue to get mover overhead crane specification and overhead crane regulations from the download center.

More keywords for overhead crane:

electric overhead crane, electric overhead traveling crane, overhead bridge crane, overhead crane bridge, overhead crane system, overhead gantry crane, overhead hoist crane, overhead traveling crane,

Lifting Capacity		t	5t		10t		16t
Working Duty		/	A6
Span		m	10.5~~31.5		10.5~~31.5		10.5~~31.5
Max. Lifting Height		m	16		16		16
Speed	Lifting	m/min	15.6		13		13
	Traveling of Trolley		39.5		43.8		44.5
	Traveling of Crane		92.7/93.7		92.7/93.7/86.4		76/89
motor	Lifting	Model	YZR180L-6		YZR225M1-6		YZR250M1-6
		KW	15		30		37
	Traveling of Trolley	Model	YZR112M-6		YZR132M1-6		YZR132M2-6
		KW	1.5		2.2		3.7
	Traveling of Crane	Model	YZR160M1-6	YZR160M2-6	YZR160M1-6	YZR160M2-6	YZR160M2-6	YZR160L-6
		KW	2×5.5 KW	2×7.5 KW	2×5.5 KW	2×7.5 KW	2×7.5 KW	2×11 KW
Electromagnetic disk	Model	/	MW1-6	MW1-16	MW1-16		MW1-16
	Attracting weight	kg	4540	3330	8330		14330
	Dead weight		460	1670	1670		1670
	Diameter	mm	776	1180	1180		1180
Steel track recommended			43Kg/m
Power Supply			Three-phase A.C. 380V, 50Hz
