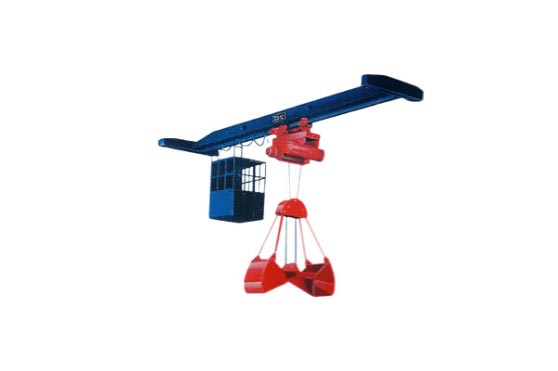

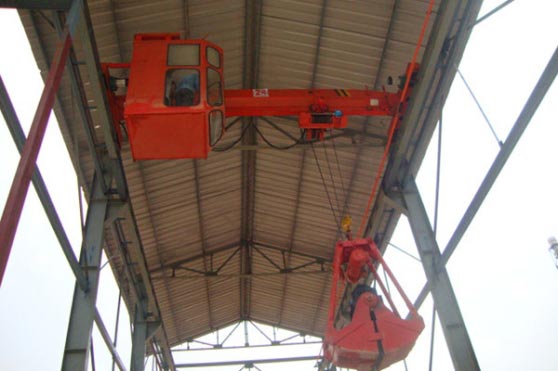

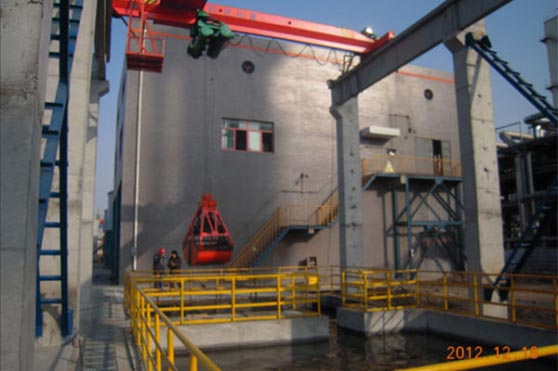

Single Girder Overhead Crane with Grab

Main Parameter：

Capacity:1,2,3,5,10,16,20T
Span:7.5~28.5m
Lifting height: 6,9,12,18,24,30m
Lifting speed: 0.35/3.5,0.7/7,0.8/8m/min

Quotation

Single girder overhead crane is a kind of light duty crane, with a capacity of 1 to 20 tons. The span is 7.5 to 31.5 meters. Working grade is A3. Working temperature is -25°C to 40°C.

It is widely used in plants, warehouse, and material stocks to lift goods.

Henan Yuntian Crane Co.,LTD. crane has top advanced overhead crane in the field of industrial overhead crane, All the overhead crane are design according to overhead crane standards. The single girder overhead crane (monorail overhead crane) and double girder overhead crane have a good design of overhead crane. overhead crane has many overhead crane components for different parts of overhead crane include overhead crane and hoist, overhead crane brake, overhead crane end trucks, overhead crane hoist, overhead crane trolley, overhead crane hooks, overhead crane kits, overhead crane pendent, overhead crane controls, overhead crane signals indicator, overhead crane rails, overhead crane rail stops and so on overhead crane equipment,

Henan Yuntian Crane Co.,LTD. crane Service for installation.

Henan Yuntian Crane Co.,LTD. crane could supply not only overhead crane but also the overhead crane solutions, firstly, we will supply overhead bridge crane design, overhead crane manual, overhead crane drawing, overhead crane wiring diagram, overhead crane electrical diagram and overhead crane safety video before or after delivery, our technician will do supervision the installation according to the document, of course, the customer can do installation by themselves according to their requirement.

After installation, our technician will indicate to do the load test according to the overhead crane load test procedure, then overhead crane operator training and overhead crane maintenance training, all the procedure will be made according to the overhead crane training videos and overhead crane training PowerPoint,

Henan Yuntian Crane Co.,LTD. crane has a lot of honor for overhead crane certification for different overhead crane types

If you want to know more information about overhead crane, please find the overhead crane attachments, overhead crane pdf, overhead crane catalogue to get mover overhead crane specification and overhead crane regulations from the download center.

The Single girder overhead crane include 1 ton overhead crane, 2 ton overhead crane, 3 ton overhead crane, 5 ton overhead crane, 10 ton overhead crane, 16 ton overhead crane, 20 ton overhead crane.

If you need bigger capacity. Please check the double girder overhead crane.

More keywords for overhead crane:

electric overhead crane, electric overhead traveling crane, overhead bridge crane, overhead crane bridge, overhead crane system, overhead gantry crane, overhead hoist crane, overhead traveling crane

Capacity	T	1,2,3,5,10,16,20
Span	m	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Lifting height	m	6、 9、 12、18、 24、 30
Lifting speed	m/min	0.35/3.5,0.7/7,0.8/8
Hoist travelling speed	m/min	20
Crane travelling speed	m/min	20,30
Max. Wheel load	KN	8.7	9.9	11	12.2	12.8	14	16.7	19.4
Rail recommended	Model	24kg/m
Total motor power	kw	1.7
Main dimension (mm)	Span(m)	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Rail top to crane top	H	490			530		580	660	745
Rail top to hook center	H4	910		955	970			990	1010
Crane base distance	W	1500	2000	2000	2500	2500	3000	3500	4000
Crane width	B	2000	2500	2500	3000	3000	3500	4000	4500
Hook left limitation	S1	796
Hook right limitation	S2	1274
