Double Beam Overhead Crane with Double Trolley

Main Parameter：

Capacity:5,10,16/3.2,20/5,32/5,50/10T
Span:10.5~31.5m
Lifting height: 6,9,12,18,24,30m
Lifting speed: 7.9,8.5,10.7,11.3,13.2,15.6m/min

Quotation

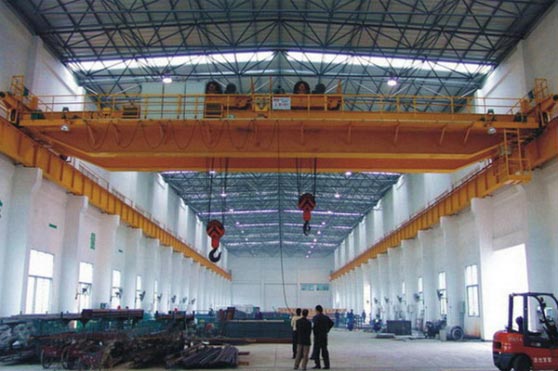

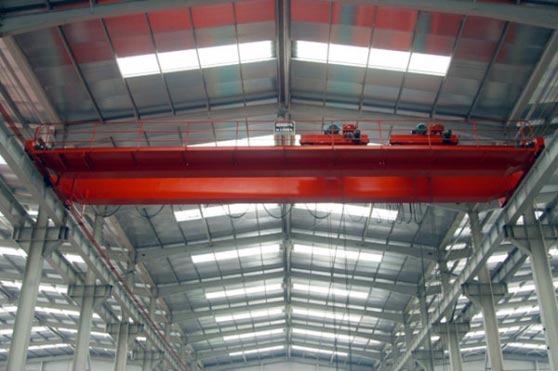

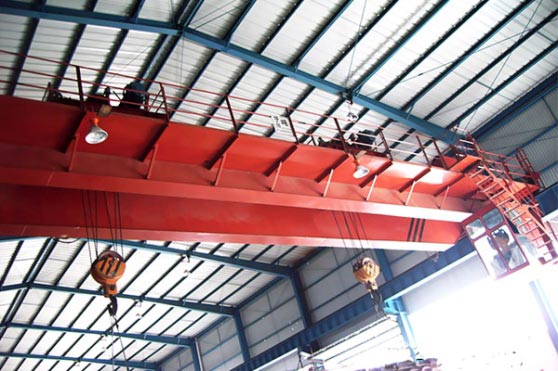

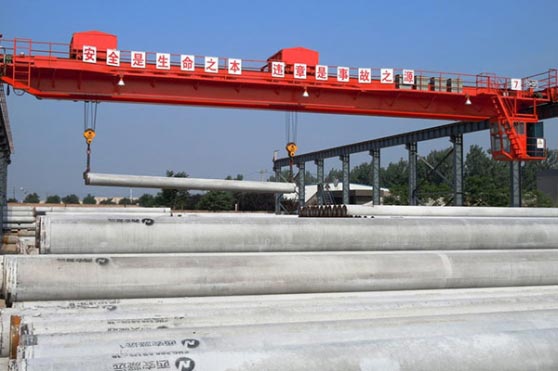

QE Model double trolley overhead crane is suitable to lift long materials(wood, paper tube, pipe and bar) in workshops or outdoors to store in factory and mines. The two trolley could work separately and at the same time.

QE double girder overhead crane are mainly consists of Girder frame, Crane travelling device, two lifting trolley and electrical parts. Bridge adopts box welded structure, high degree of vertical and horizontal rigidity; crane travelling mechanism adopts separate drive. It has a strong beam and a stable travelling mechanism; the emergency switch can stop any movement once any dangerous happened. It is rely on the bridge frame along the workshop rail direction moving longitudinal, the trolley along the main beam direction moving transverse and the hook lifting movement to work.

It is an excellent choice where high speeds and heavy service are required. As the widely used hoisting machinery currently especially is suitable for working at warehouses and freight yard and other department it is prohibited to use the equipment in the combustible, explosive or corrosives environment.

Henan Yuntian Crane Co.,LTD. crane could supply not only overhead crane but also the overhead crane solutions, firstly, we will supply overhead bridge crane design, overhead crane manual, overhead crane drawing, overhead crane wiring diagram, overhead crane electrical diagram and overhead crane safety video before or after delivery, our technician will do supervision the installation according to the document, of course, the customer can do installation by themselves according to their requirement.

After installation, our technician will indicate to do the load test according to the overhead crane load test procedure, then overhead crane operator training and overhead crane maintenance training, all the procedure will be made according to the overhead crane training videos and overhead crane training PowerPoint,

Henan Yuntian Crane Co,.LTD. crane has a lot of honor for overhead crane certification for different overhead crane types

If you want to know more information about overhead crane, please find the overhead crane attachments, overhead crane pdf, overhead crane catalogue to get mover overhead crane specification and overhead crane regulations from the download center.

The Double girder overhead crane Capacity from 5ton to 900ton,

Capacity	T	5+5
Span	m	10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5
Lifting height	m	16
Lifting speed	m/min	15.6
Trolley travelling speed	m/min	37.2
Crane travelling speed	m/min	92.7			93.7		86.5
Total weight	kg	15406	17290	20020	21724	24213	28579	31970	35389
Max. Wheel load	KN	104	111	120	125	132	144	152	162
Rail recommended	Model	43kg/m
Total motor power	kw	27.8			31.8
Main dimension (mm)	Span(m)	10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5
Rail top to crane top	H	1750					1840
Rail top to hook center	H4	55					5
Crane base distance	W	5140			5334		5940
Crane width	B	3450					4400
Trolley rail distance	K	1400
Hook left limitation	S1	800
Hook right limitation	S2	1250

Capacity	T	10+10
Span	m	10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5
Lifting height	m	16
Lifting speed	m/min	13.2
Trolley travelling speed	m/min	43.8
Crane travelling speed	m/min	76				89
Total weight	kg	19947	21375	23541	27705	30304	34660	38352	41497
Max. Wheel load	KN	167	174	183	197	205	218	29	239
Rail recommended	Model	43kg/m
Total motor power	kw	32.3			44
Main dimension (mm)	Span(m)	10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5
Rail top to crane top	H	1949			2039
Rail top to hook center	H4	533			443
Crane base distance	W	6274					7004
Crane width	B	3450					4400
Trolley rail distance	K	2000
Hook left limitation	S1	1050
Hook right limitation	S2	1300

Capacity	T	16+16
Span	m	10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5
Lifting height	m	16
Lifting speed	m/min	10.7
Trolley travelling speed	m/min	44.6
Crane travelling speed	m/min	89			75.3		75.3
Total weight	kg	28061	30292	33412	38607	42832	47023	50586	55272
Max. Wheel load	KN	242	255	268	285	299	312	322	335
Rail recommended	Model	QU70
Total motor power	kw	47					56
Main dimension (mm)	Span(m)	10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5
Rail top to crane top	H	2187	2191		2321
Rail top to hook center	H4	637	635		505
Crane base distance	W	6074			6244		6544
Crane width	B	4150			4200		4500
Trolley rail distance	K	2000
Hook left limitation	S1	1850
Hook right limitation	S2	1500
