Casting Overhead Crane

Main Parameter：

Capacity:32/5,50/10T
Span:10.5~31.5m
Lifting height: 16,18m
Lifting speed: 15.6m/min

Quotation

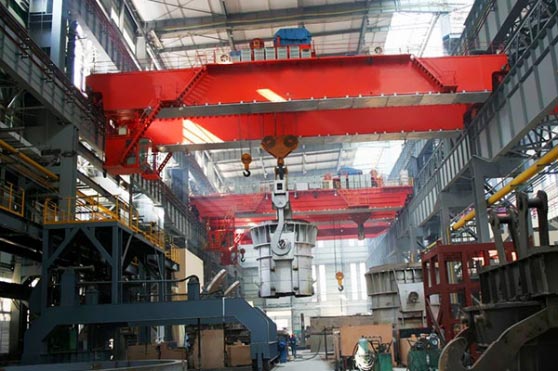

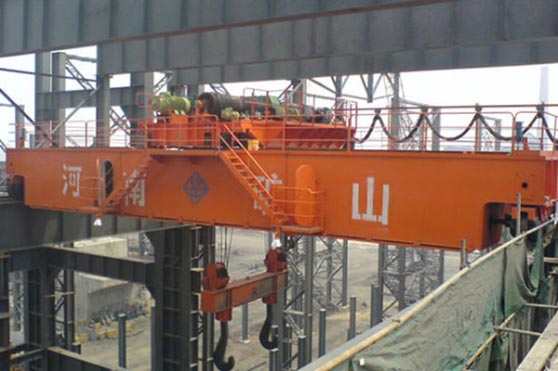

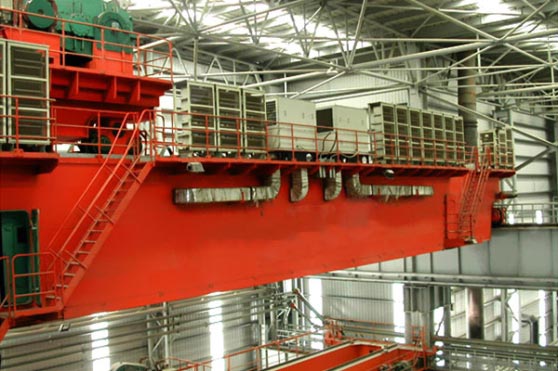

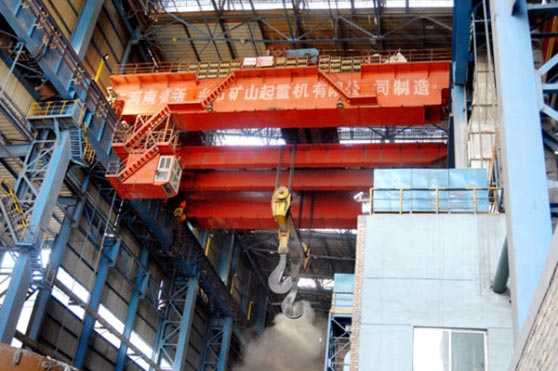

Casting crane is the main equipment of steel making and continuous casting process. Mainly used for lifting and transportation of liquid steel ladle.

Overall structure can be divided into: double girder double-track, four beams and four-track, four-beam rail and other types. The first two are generally used for large tonnage crane, and the third is generally used for large tonnage of foundry crane.

Casting crane company design and manufacture of advanced technology, novel structure, safe, reliable, economical and durable, and easy maintenance.

In addition, our casting crane offers the following features to be selected: 1.Rotary spreader, 2.The gantry hook from the variable. 3. Load weighing and display.

Henan Yuntian Crane Co,.LTD. crane could supply not only overhead crane but also the overhead crane solutions, firstly, we will supply overhead bridge crane design, overhead crane manual, overhead crane drawing, overhead crane wiring diagram, overhead crane electrical diagram and overhead crane safety video before or after delivery, our technician will do supervision the installation according to the document, of course, the customer can do installation by themselves according to their requirement.

After installation, our technician will indicate to do the load test according to the overhead crane load test procedure, then overhead crane operator training and overhead crane maintenance training, all the procedure will be made according to the overhead crane training videos and overhead crane training PowerPoint.

Henan Yuntian Crane Co,.LTD. crane has a lot of honor for overhead crane certification for different overhead crane types.

If you want to know more information about overhead crane, please find the overhead crane attachments, overhead crane pdf, overhead crane catalogue to get mover overhead crane specification and overhead crane regulations from the download center.

Capacity	T	32/5,50/10
Span	m	10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5
Lifting height	m	16/18
Lifting speed	m/min	15.6
Trolley travelling speed	m/min	3.36-33.6,2.9-29
Crane travelling speed	m/min	92.7			93.7		86.5
Total weight	kg	15406	17290	20020	21724	24213	28579	31970	35389
Max. Wheel load	KN	104	111	120	125	132	144	152	162
Rail recommended	Model	43kg/m
Total motor power	kw	27.8			31.8
Main dimension (mm)	Span(m)	10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5
Rail top to crane top	H	1750					1840
Rail top to hook center	H4	55					5
Crane base distance	W	5140			5334		5940
Crane width	B	3450					4400
Trolley rail distance	K	1400
Hook left limitation	S1	800
Hook right limitation	S2	1250
